E-TEN1021 Toggle Rocker Switch Self-Locking ON-OFF 15A
E-TEN/1021/Toggle Rockers are widely used to control the operation of many small power electronic projects, various additional electric equipment inside & outside the car.
Price range: $2.50 through $8.95
This item: E-TEN1021 Toggle Rocker Switch Self-Locking ON-OFF 15A
Price range: $2.50 through $8.95
Price range: $2.50 through $8.95
Description
Additional information
Applications
Support & Utility
Q & A
E-TEN1021 Toggle Rocker Switch Self-Locking ON-OFF 15A. A switch with a lever that you can build in has two pins and can be used as an on-off switch.
They are widely used to control the operation of many small power electronic projects and various additional electric equipment inside & outside the car.
Features:
- Single pole, single throw = SPST
- Position:2 (ON-OFF)
- Colour: Orange
- Material : Metal & Resin
- Terminal Material: Brass with silver plated
- Contact Rating: 15A 250VAC
- Working voltage: 12V

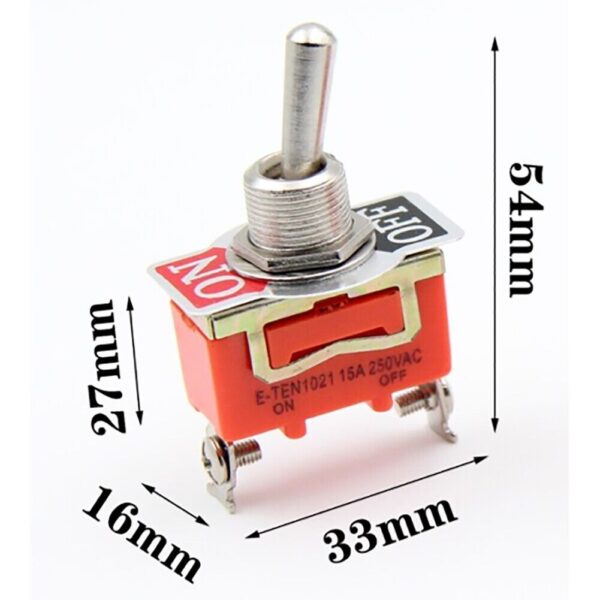

- Dimensions: 33 x 13 x 8mm
- Thread diameter: 11.6mm
- SPST contacts
- Electrical Life: ≥ 10,000 Cycles
- Mechanical Life: ≥ 100,000 Cycles
- Dielectric strength: 1500VAC 1 minute
- Operating Temperature: -25℃~+85℃
- Contact Resistance: 50mΩ max
- Insulation Resistance: 1000mΩ min (500VDC)
- RoHS: Yes
- 2 Locking Nuts, 1 washer and On off Plate

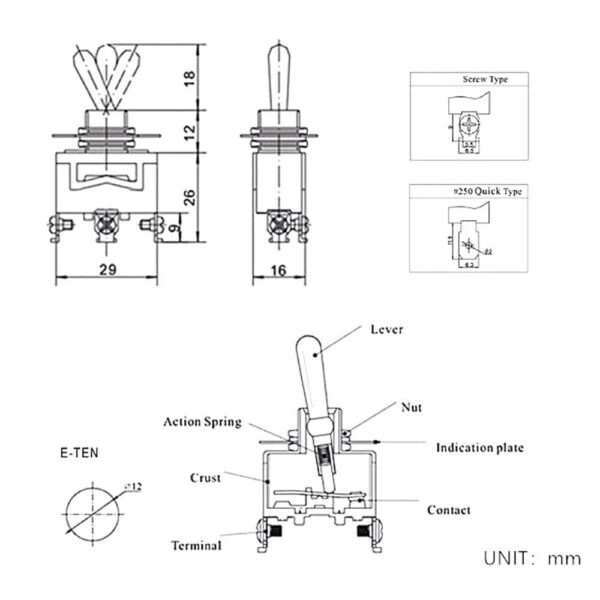

Product Drawings:
Please see below for the dimensioned drawings for this product.
Package included: 1x or 5x E-TEN1021 Toggle Rocker Switch Self-Locking ON-OFF 15A.
