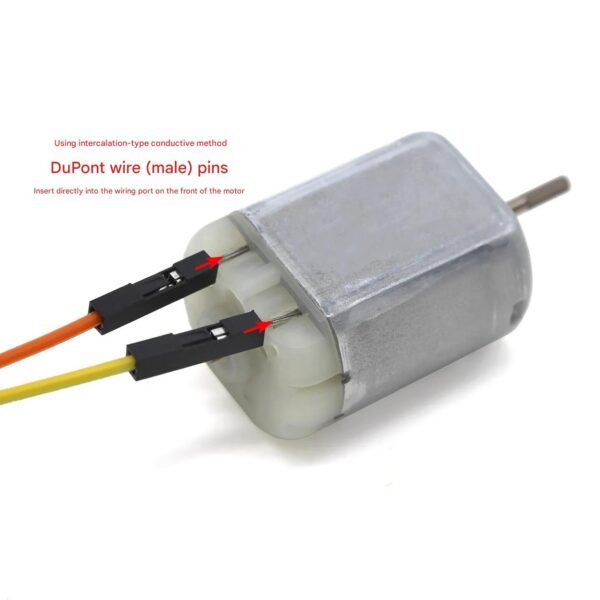

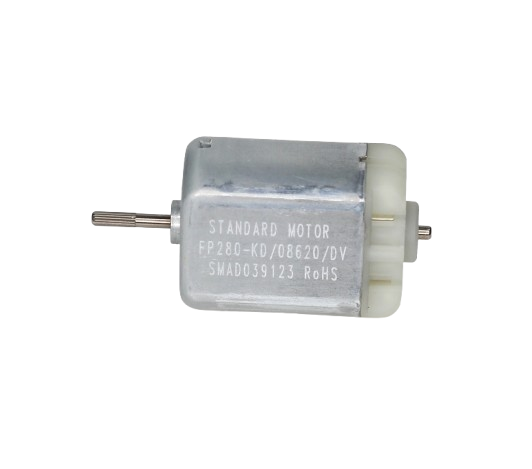

FP-280KD DC Motor 3-12V 3300RPM

Name: FP-280KD DC Motor 3-12V 3300RPM
SKU: (TS-M042) (TS-M042-1) (TS-M042-2)-1
Availability: InStock

FP-280KD DC Motor 6-12V 3300RPM is a Small, compact, high-speed, brushless DC motor, ideal for applications requiring efficiency and durability.

This item: FP-280KD DC Motor 3-12V 3300RPM

28BYJ-48 Stepper Motor Small Size and High Torque

Small Size and High Torque Stepper Motor - 24BYJ48

1 × 28BYJ-48 Stepper Motor Small Size and High Torque

7 in stock

$7.95

Servo Motor SG-5010 - 360 degrees

1 × Servo Motor SG-5010 - 360 degrees

10 in stock

$12.75

Title	Qty	Discount
Qty Discount	4 - 9	5% $3.75
Qty Discount	10 +	8% $3.63

SKU: (TS-M042) (TS-M042-1) (TS-M042-2)-1

Categories:280 motor series, DC Brush Motor, Motors - Servo's

Description

Additional information

Applications

Support & Utility

Q & A

The FP-280KD-08620 is a small, brushless DC motor commonly used in low-power applications. It is valued for its compact size, lightweight design, and reliable performance.

Specifications:

Model: FP-280KD-08620
Motor Length: 30.5 mm
Motor Width: 24 mm
Motor Thickness: 18.3 mm
Motor Shaft Diameter: 2 mm
Shaft: Embossed
Transmission Shaft Length: 11 mm
Step Height: 1.5 mm
Compatible Voltage: 6-12 V.
Motor Parameter:
3V, 550rpm, no load current 0.01A, load current 0.05A
6V, 1650rpm, no load current 0.02A, load current 0.08A
12V, 3300RPM, 0.02A, Load Current 0.16A
Motor Weight: Approx. 38.4g

Package Includes:

FP-280KD DC Motor 6-12V 3300RPM
