Jumper Shunt Microshunt 1.27mm Pitch

Name: Jumper Shunt Microshunt 1.27mm Pitch
SKU: 23304
Availability: InStock

Use these Electronic Jumpers (also called shunts or links) to create an electrical connection between two pin headers. A non-conductive plastic block covering the conductor prevents any accidental circuit shorts.

This item: Jumper Shunt Microshunt 1.27mm Pitch

Right Angle 10 Pin PCB Mount Boxed Header

1 × Right Angle 10 Pin PCB Mount Boxed Header

147 in stock

$0.65

LM317TG Voltage regulator Adjustable

1 × LM317TG Voltage regulator Adjustable

5 in stock

$1.35

Title	Qty	Discount
Qty Discount	4 - 9	5% $2.38
Qty Discount	10 +	8% $2.30

SKU: N/A

Categories:Components & Parts, Jumper Shunt

Description

Additional information

Applications

Support & Utility

Q & A

Jumper Shunt Microshunt 1.27mm pitch creates an electrical connection between two pin headers. A non-conductive plastic block covering the conductor prevents any accidental circuit shorts.

When a jumper is placed over two or more jumper pins, an electrical connection is made between them, and the equipment is thus instructed to activate specific settings accordingly. These Jumpers are used with our CNC Shields for many applications.

Specifications:

Current: 1A
Dielectric Strength: 500V AC RMS for 1 minute

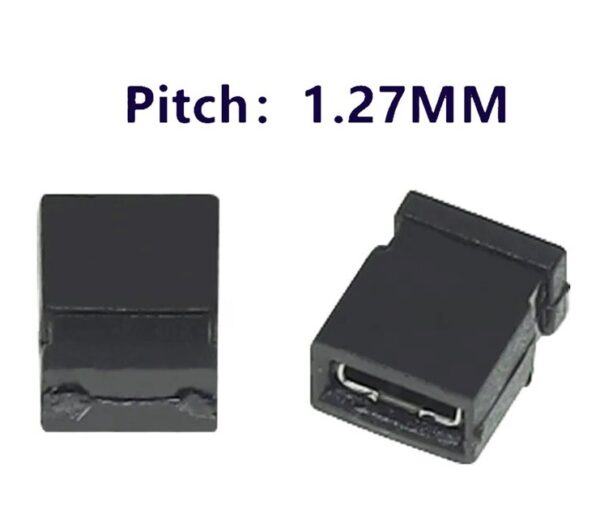

The pitch of 1.27 mm
The contact resistance of 20 mΩ (milliohms)
Female shorting link with straight orientation
Two contacts, one row
Plastic: PBT, Glass-filled
Contact material of phosphor bronze
Colour: Black

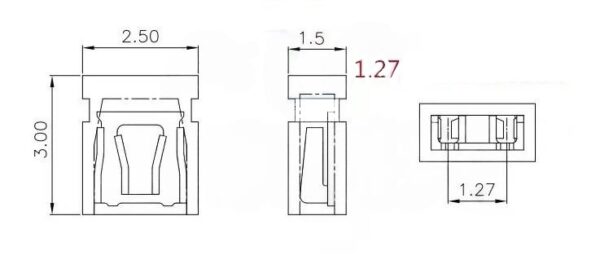

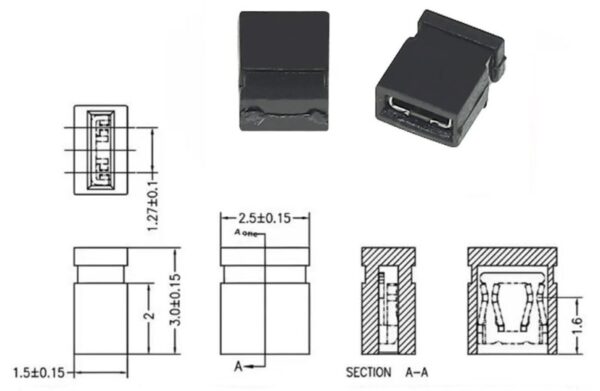

Dimensions of 3.0 mm x 2.5 mm x 1.5 mm ±0.5%
Temperature Range : -40°C to +105°C
UL 94 V flame-retardant rating
RoHS (Restriction of Hazardous Substances) compliant

Package Includes:

Jumper Shunt Microshunt 1.27mm 10 or 25 pack.
