Lithium Battery Voltage Level LED Indicator

Name: Lithium Battery Voltage Level LED Indicator
SKU: 23133
Availability: InStock

Ultra-thin power display, 5 LED indicators, is more intuitive and more beautiful Levels Capacity Indicator Monitor Tester for 1S to 5S Lithium Battery.

$5.95

This item: Lithium Battery Voltage Level LED Indicator

$5.95

601230 Lithium ion polymer Battery (LiPo) (3.7V 160mAh)

601230 Lithium ion polymer Battery lithium polymer

1 × 601230 Lithium ion polymer Battery (LiPo) (3.7V 160mAh)

35 in stock

$9.15

XL4015 Module Power Converter DC 4～38V To 1.25-36V 5A

1 × XL4015 Module Power Converter DC 4～38V To 1.25-36V 5A

4 in stock

$6.95

852040 Lithium ion polymer Battery (LiPo) (3.7V 650mAh)

852040 Lithium ion polymer Battery lithium polymer

1 × 852040 Lithium ion polymer Battery (LiPo) (3.7V 650mAh)

36 in stock

$9.95

751643 Lithium ion polymer Battery (LiPo) (3.7V 430mAh)

751643 Lithium ion polymer Battery lithium polymer

1 × 751643 Lithium ion polymer Battery (LiPo) (3.7V 430mAh)

31 in stock

$8.95

Title	Qty	Discount
Qty Discount	4 - 9	5% $5.65
Qty Discount	10 +	8% $5.47

SKU: N/A

Categories:18650 Cells, Level Indicator, Power Control

Description

Additional information

Applications

Support & Utility

Q & A

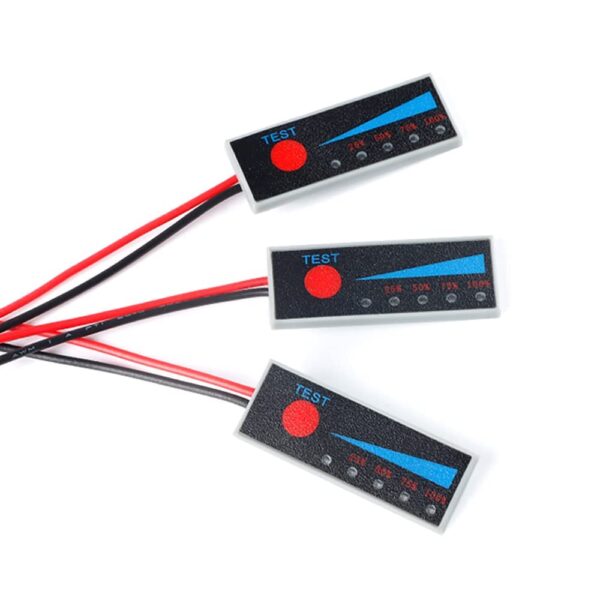

Lithium Battery Voltage Level LED Indicator (1S to 5S) to check the lithium battery power Level. With the help of this level tester, you can check your battery’s charge and discharge levels. Four level LEDs glow at specific voltage levels of the battery, as shown below.

Specifications:

Size: 2.5 X 40 X 15 mm
Level LED: Five
Operating Current: 30mA
LED off No Current Draw
Cable Length: 150 mm
The LED light will turn off after a delay of 10-15 seconds
Reverse connection protection

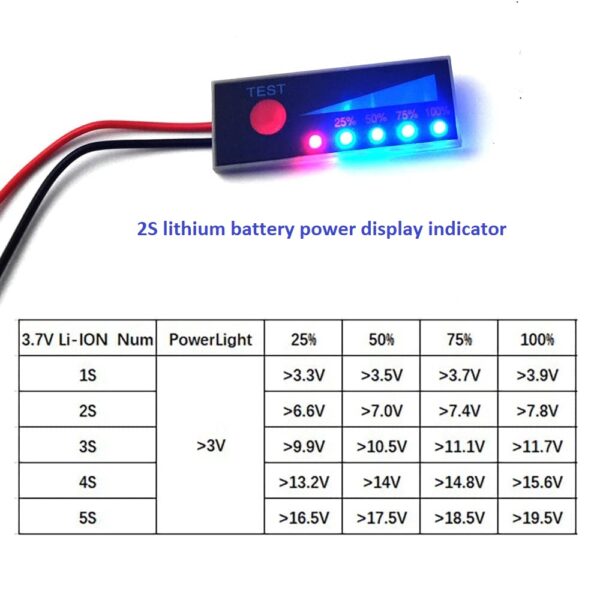

1S: Lithium Li-ion Power Level：
25%: 3.3V
50%: 3.5V
75%: 3.7V
100%: 3.9V
2S: Lithium Li-ion Power Level：
L1: 6.6V
L2: 7.0V
L3: 7.4V
L4: 7.8V
3S: Lithium Li-ion Power Level：
25%: 9.9V
50%: 10.5V
75%: 11.1V
100%: 11.7V
4S: Lithium Li-ion Power Level：
25%: 13.2V
50%: 14V
75%: 14.8V
100%: 15.6V
5S: Lithium Li-ion Power Level：
25%: 16.5V
50%: 17.5V
75%: 18.5V
100%: 19.5V

Package Includes:

Lithium Battery Voltage Level LED Indicator
