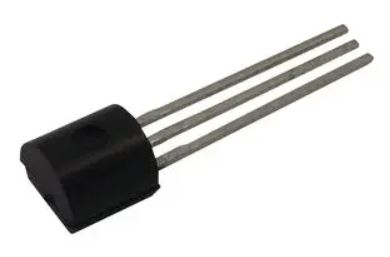

LM35DZ temperature sensor

Name: LM35DZ temperature sensor
SKU: (TS-C069-2) (TS-C069-1) (TS-C069)
Availability: InStock

The LM35 series are precision Integrated-circuit temperature sensors with an output voltage linearly proportional to the Centigrade temperature. The user is not required to subtract a large constant voltage from the output to obtain convenient Centigrade scaling.

55 in stock

This item: LM35DZ temperature sensor

L4931 5.0V 250mA Linear Voltage regulator 5 Pack

1 × ~~L4931 5.0V 250mA Linear Voltage regulator 5 Pack~~

Out of stock

$4.55

Title	Qty	Discount
Qty Discount	4 - 9	5% $2.47
Qty Discount	10 +	8% $2.39

SKU: (TS-C069-2) (TS-C069-1) (TS-C069)

Categories:Components & Parts, Temperature Sensor

Description

Additional information

Applications

Support & Utility

Q & A

The LM35DZ is a precision temperature sensor with an analog output that is linearly proportional to the Temperature in Celsius (°C).

It is widely used in Temperature measurement applications due to its ease of use, accuracy, and linear response.

Specifications:

IC Output Type: Voltage
Sensing Accuracy Range: ± 0.4°C
Temperature Sensing Range: +2°C to +100°C
Output Voltage per °C: 10mV/°C
Supply Current: 91.5µA
Supply Voltage Range: 4V to 30V
Sensor Case Style: TO-92
No. of Pins: 3
Accuracy: ±0.4°C

Package Includes:

LM35DZ temperature sensor
