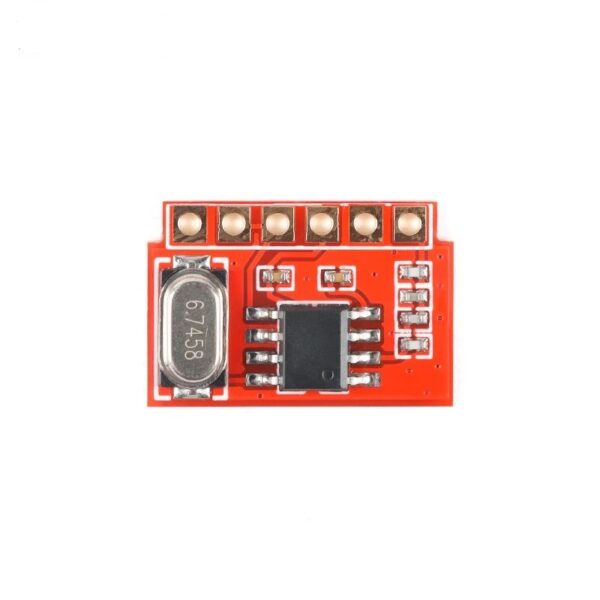

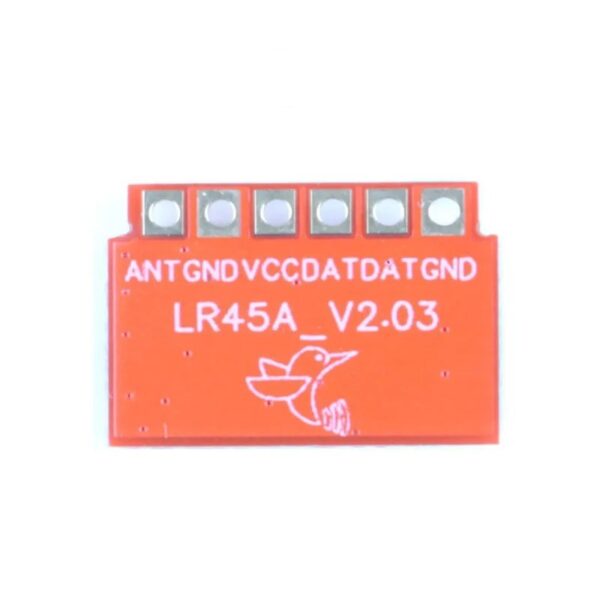

LR45A 433mhz RF Wireless Receiver Module

Name: LR45A 433mhz RF Wireless Receiver Module
SKU: TS-W061
Availability: InStock

These modules are commonly used for remote control systems, Wireless data Transmission, home Automation, and other RF communication applications. ASK Superheterodyne Wireless Receiver Module

$5.95

5 in stock

This item: LR45A 433mhz RF Wireless Receiver Module

5 in stock

$5.95

NodeMCU WIFI ESP8266 0.96 INCH OLED

1 × NodeMCU WIFI ESP8266 0.96 INCH OLED

3 in stock

$18.95

CH340 USB to ESP8266 ESP-01 Wifi Module Adapter

1 × CH340 USB to ESP8266 ESP-01 Wifi Module Adapter

11 in stock

$6.95

JDY-40 2.4G Wireless Serial Port Transceiver super NRF24L01

1 × JDY-40 2.4G Wireless Serial Port Transceiver super NRF24L01

10 in stock

$3.95

ESP8266 ESP-01 ESP-01S RGB LED Controller

1 × ESP8266 ESP-01 ESP-01S RGB LED Controller

13 in stock

$3.95

Title	Qty	Discount
Qty Discount	4 - 9	5% $5.65
Qty Discount	10 +	8% $5.47

SKU: TS-W061

Categories:RF Transceiver Module, Wireless Communication

Description

Additional information

Applications

Support & Utility

Q & A

The LR45A is a type of RF (Radio Frequency) wireless receiver modules that operate in the 433 MHz frequency range. These modules are commonly used for remote control systems, wireless data transmission, home automation, and other RF communication applications.

Specifications:

Model: LR45A ASK/OOK Receiver
Operating frequency: 433MHz
Sensitivity: Around -110 dBm
RF Chip: LR680R
Modulation method: ASK / OOK (Amplitude Shift Keying / On-Off Keying)
Data Rate: Up to 10 kbps (depending on conditions and modulation)
Antenna: Usually an external wire or spring antenna (not included)
transmission distance: up to 200m(line of sight out doors)
Interface: Digital output (usually connected to a microcontroller like Arduino)
Operating Current: 2ma/2.5ma
Standby current: < 60NA in sleeping state
Operating voltage: 2~5.5,v typical 5v
Working temperature: -40~85 degrees Celsius.

*Depends on antenna, environment, and transmission power.

Package Includes:

LR45A 433mhz RF Wireless Receiver Module
