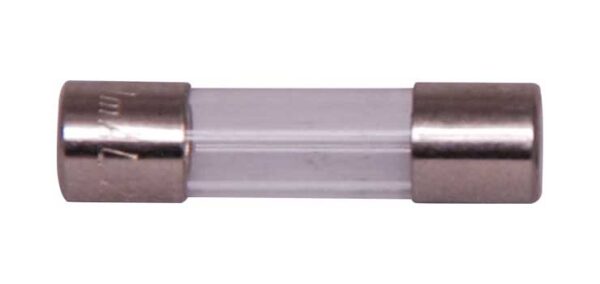

M205 5x20mm 250V Fuses

Available in

TS-C051 • 250mA 5×20 (M205) 250V Fuse

TS-C052 • 500mA 5×20 (M205) 250V Fuse

TS-C053 • 1A 5×20 (M205) 250V Fuse

TS-C054 • 2A 5×20 (M205) 250V Fuse

Glass fuse. Quick Blow

Reference Fuse History.

Packages and materials

• Fuses come in a vast array of sizes and styles to serve in many applications, manufactured in standardised package layouts to make them easily interchangeable.
• Fuse bodies may be made of ceramic, glass, plastic, fiberglass, molded mica laminates, or molded compressed fibre depending on application and voltage class.
• Cartridge (ferrule) fuses have a cylindrical body terminated with metal end caps.
• Blade type fuses often require the use of a special purpose extractor tool to remove them from the fuse holder.
• Renewable fuses have replaceable fuse elements, allowing the fuse body and terminals to be reused if not damaged after a fuse operation.
• Fuses designed for soldering to a printed circuit board have radial or axial wire leads.
• High-voltage fuses of the expulsion type have fiber or glass-reinforced plastic tubes and an open end and can have the fuse element replaced.
• While glass fuses have the advantage of a fuse element visible for inspection purposes, they have a low breaking capacity (interrupting rating), which generally restricts them to applications of 15 A or less at 250 VAC.
• Ceramic fuses have the advantage of a higher breaking capacity, facilitating their use in circuits with higher current and voltage.
• Filling a fuse body with sand provides additional cooling of the arc and increases the breaking capacity of the fuse. Medium – voltage fuses may have liquid-filled envelopes to assist in the extinguishing of the arc. Some types of distribution switchgear use fuse links immersed in the oil that fills the equipment.

Other Related Products:

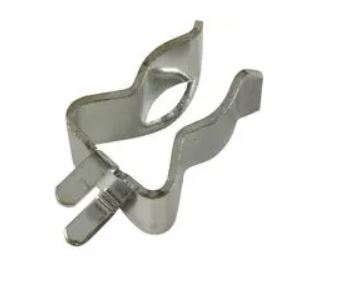

M205 PCB Mount Fuse Clip
