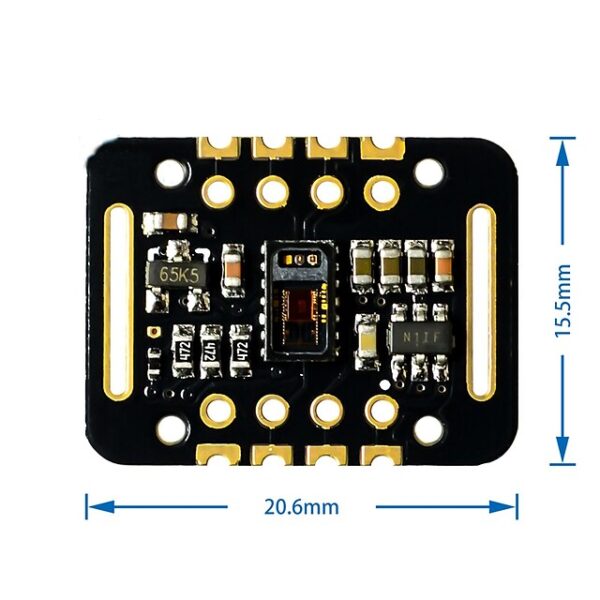

MAX30102 Heart Rate and Pulse Oximeter Sensor Module
The MAX30102 Heart Rate and Pulse Oximeter Sensor Module allow for easy monitoring and reading of pulse and heart rate, biosensor module is based on PPG (Photo Plethysmo Graphy)
Price range: $5.15 through $5.25
12 in stock
This item: MAX30102 Heart Rate and Pulse Oximeter Sensor Module
Price range: $5.15 through $5.25
Price range: $5.15 through $5.25
Description
Additional information
Applications
Support & Utility
Q & A
This MAX30102 Heart Rate and Pulse Oximeter Sensor Module. It includes internal LEDs, photodetectors, optical elements, and low-noise electronics with ambient light rejection.
It provides a complete system solution to ease the design-in process for mobile and wearable devices.
The MAX30102 operates on a single 1.8V power supply and a separate 3.3V power supply for the internal LEDs. Communication is through a standard I2C-compatible interface.
The module can be shut down through software with zero standby current, allowing the power rails to remain powered at all times.
It is widely used in wearable devices, fitness assistant devices, smartphones and tablets.
Features:

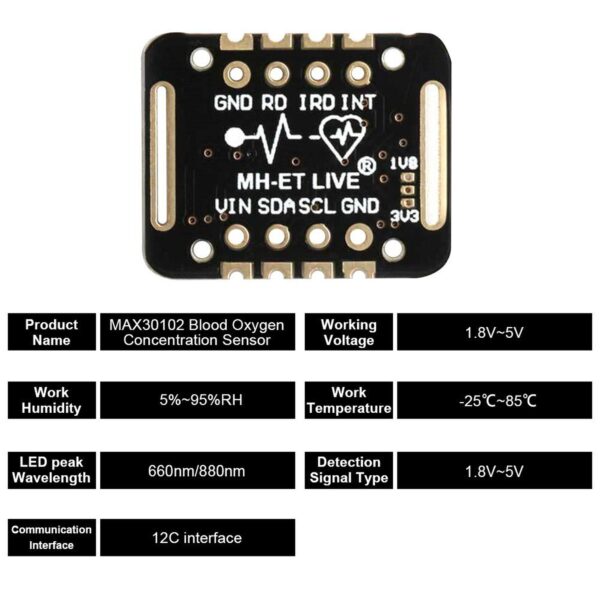

- Operating voltage: 3.3V – 5V DC
- Detection type: Light refraction signal (PPG)
- Sample rate: 50Hz – 3200Hz
- Peak LED wavelength: 660nm / 880nm
- Operating temperature: -40C – 85C
- Operating current: 6mA Max
- 18-bit ADC resolution
- I2C interface

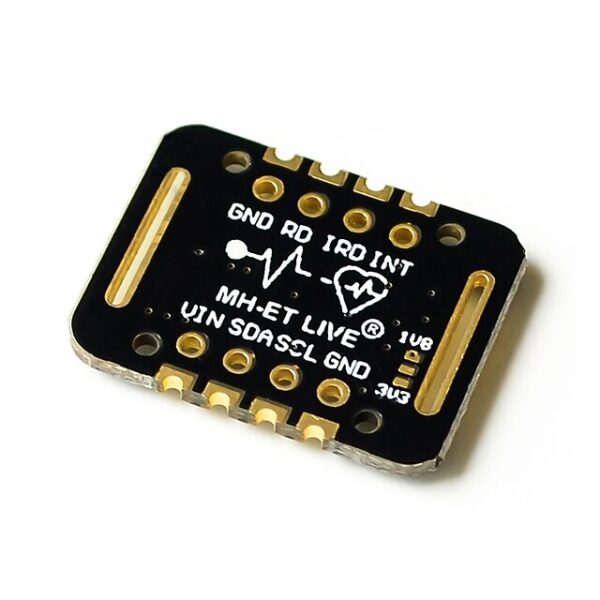

- VIN: Voltage input – 1.8V – 5V DC
- SCL: Clock (Connected to I2C Bus)
- SDA: Data (Connected to I2C Bus)
- INT: Interrupt Pin of MAX30102 Chip
- RD: Red LED ground terminal of MAX30102 Chip
- IRD: IR LED ground terminal of MAX30102 Chip
- GND: Ground

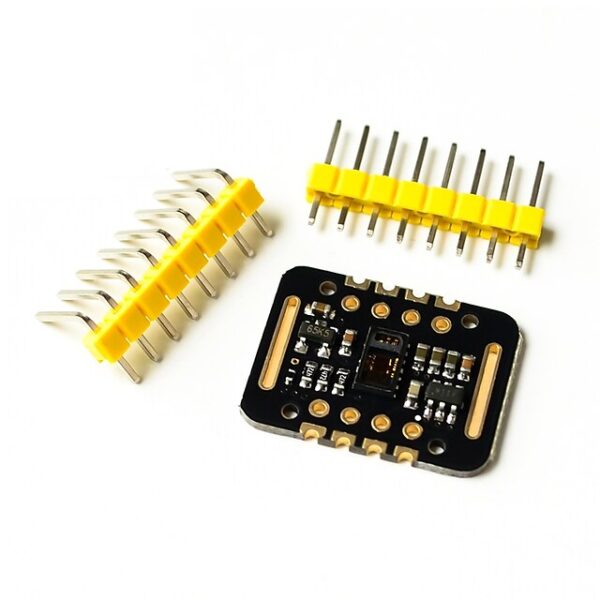

Package included: 1x MAX30102 Heart Rate and Pulse Oximeter Sensor Module
