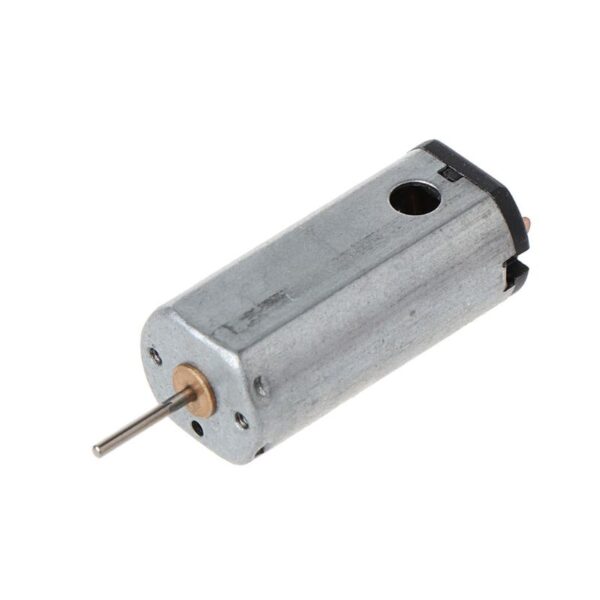

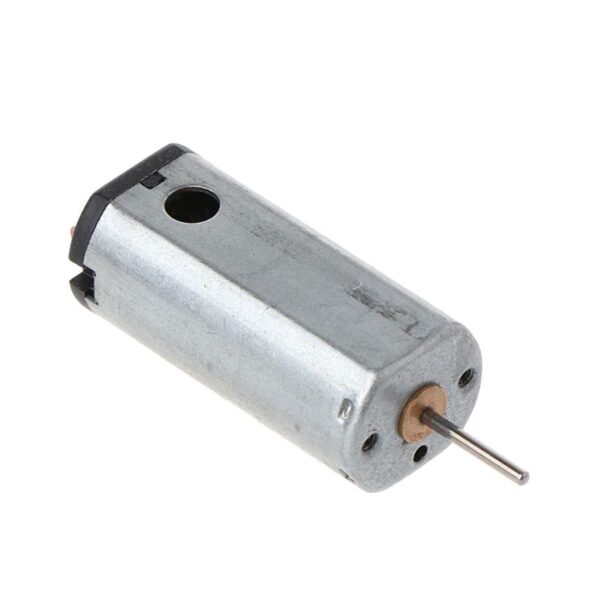

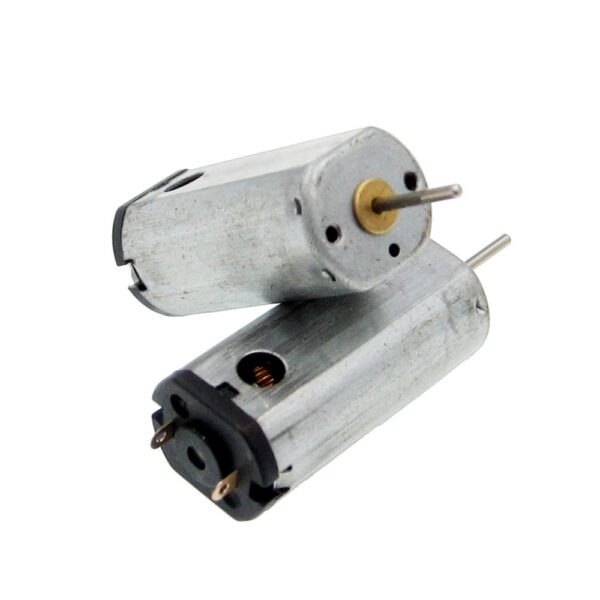

OT-FF-N40WA Brushless DC Motor 3.7V 32000RPM

Name: OT-FF-N40WA Brushless DC Motor 3.7V 32000RPM
SKU: (TS-M041) (TS-M041-1) (TS-M041-2)
Availability: InStock

OT-FF-N40WA Brushless DC Motor 3.7V 32000RPM is a compact and high-speed brushless DC motor, ideal for applications requiring efficiency and durability.

This item: OT-FF-N40WA Brushless DC Motor 3.7V 32000RPM

WeMos D1 Dual Motor Shield

1 × WeMos D1 Dual Motor Shield

7 in stock

$8.99

MG90S 180 degrees Plastic Gear High Torque Micro Servo

1 × MG90S 180 degrees Plastic Gear High Torque Micro Servo

5 in stock

$11.75

Title	Qty	Discount
Qty Discount	4 - 9	5% $3.75
Qty Discount	10 +	8% $3.63

SKU: (TS-M041) (TS-M041-1) (TS-M041-2)

Categories:050 motor series, DC Brush Motor, Motors - Servo's

Description

Additional information

Applications

Support & Utility

Q & A

OT-FF-N40WA Brushless DC Motor 3.7V 32000RPM is a compact brushless DC motor designed for high-speed performance. Operating at 3V, it delivers an impressive 32,000 RPM, making it ideal for applications requiring rapid rotations in a small form factor.

Its brushless design ensures efficient operation, reduced noise, and extended lifespan compared to brushed motors. This motor is commonly used in small appliances, hobby projects, precision devices, and compact cooling systems.

Its lightweight and durable construction provides reliable performance for demanding tasks. The OT-FF-N40WA combines speed and efficiency, making it versatile for various applications.

Specifications:

Motor model: OT-FF-N40WA
RPM:3.7v 32000
Bear Solder Tabs
Screw hole: M 1.0
Widest Hole distance: 8.5 mm
Narrow Hole Distance: 5mm
Voltage: operating range: 3.7V
Efficiency: 68.4 (%)
Stalled rotor current:3.9A
Motor diameter: 12mm
Fuselage thickness: 10MM
Motor length: 22.5mm
Output shaft: 1.0mm
Length of output shaft: 5.5mm
At Maximum Efficiency: Voltage Speed (no load) Current
Voltage: 3.7 V No Load Current: 0.28MA No Load Speed: 32000RPM
Rated torque: 1.44（NM）
Weight: 11.3 grams

Package Includes:

OT-FF-N40WA Brushless DC Motor 3.7V 32000RPM
