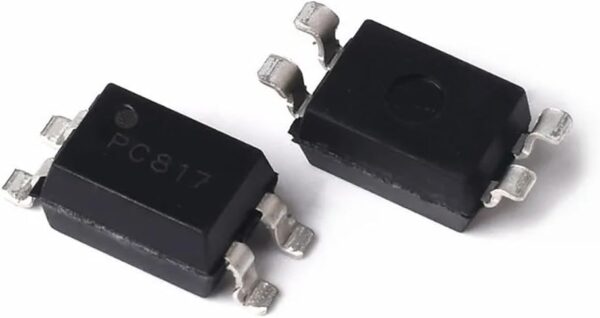

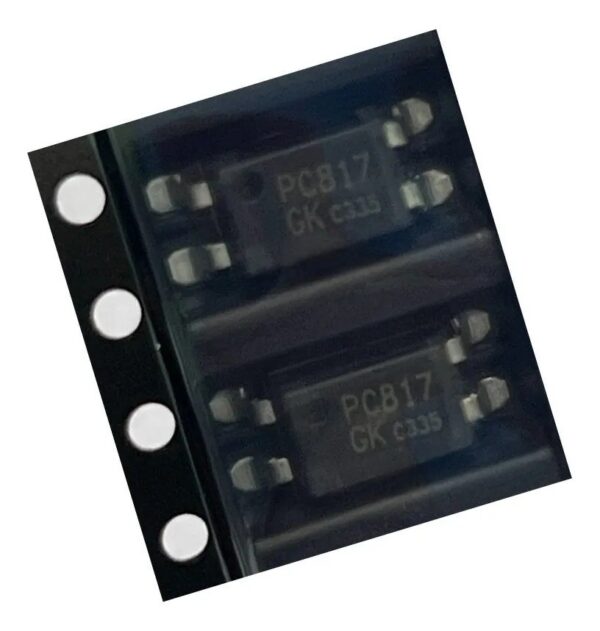

PC817C SMD Transistor Output Optocouplers

Name: PC817C SMD Transistor Output Optocouplers
SKU: 48292
Availability: InStock

The PC817C is an optocoupler that consists of an infrared-emitting diode (LED) and a phototransistor, both housed in a 4-pin SMD package.

This item: PC817C SMD Transistor Output Optocouplers

PS2501-4 Optocoupler 4 Channel

1 × ~~PS2501-4 Optocoupler 4 Channel~~

Out of stock

$2.95

74HC14N Hex Schmitt-Trigger Inverters

1 × 74HC14N Hex Schmitt-Trigger Inverters

25 in stock

$1.75

Title	Qty	Discount
Qty Discount	4 - 9	5% $1.76
Qty Discount	10 +	8% $1.70

SKU: N/A

Categories:General ICs, Opto-isolators

Description

Additional information

Applications

Support & Utility

Q & A

The PC817C SMD Transistor Output Optocoupler is an optocoupler that consists of an infrared-emitting diode (LED) and a phototransistor, both of which are housed in a 4-pin package. It is widely used for signal isolation and transfer between circuits while maintaining electrical separation.

Specifications:

Package / Case: SMD – 4
Vf – Forward Voltage: 1.4 V
Isolation Voltages: 5 kV
Operating Temperature: – 55 ~ + 110
Output Current: 50 mA
Collector-Emitter Saturation Voltage Vcesat@Ic If: 200 mV @1 mA , 20 mA
Number Of Outputs: 1
Reverse Voltage:6 V

Package Includes:

PC817C SMD Transistor Output Optocouplers
