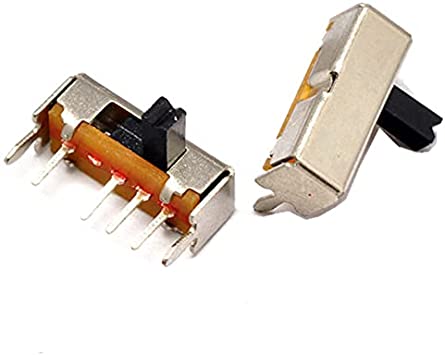

SK-13D07 PCB Mounted Miniature Horizontal Slide Switch

SK-13D07 PCB Mounted Miniature Horizontal Slide Switch; This Switch is tiny and unsuitable for high currents.

Specifications:

• Model Number: SK-13D07
• Action Type: 1P3T
• Terminals: 3
• Mount:  2 pins
• Terminal Length: 3mm
• Max. Voltage: DC 50V
• Max. Current: 0.5A
• Contact resistance: ≤30mΩ Max
• Voltage: 500V AC for 1 min
• Pin Pitch 4mm and 8mm
• Main Body Size: 12.8 x 4.5 x 4.7mm
• Knob Size: 2 x 2 x 4mm
• Handle: v
• Actuating Force: 250+/-100gf
• Operating temperature: -10℃ to 60℃
• Storage temperature: -40℃ to 85℃
• Mechanical Life: 10000 cycles min, Unloading 15~18cycles per min
• Housing Material: Stainless Steel, Iron
• Surface Treatment : Housing: Nickel Plated; Pins: Tin Plated, Silver Plated
• low power applications
• Certificate: RoHS

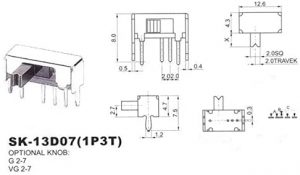

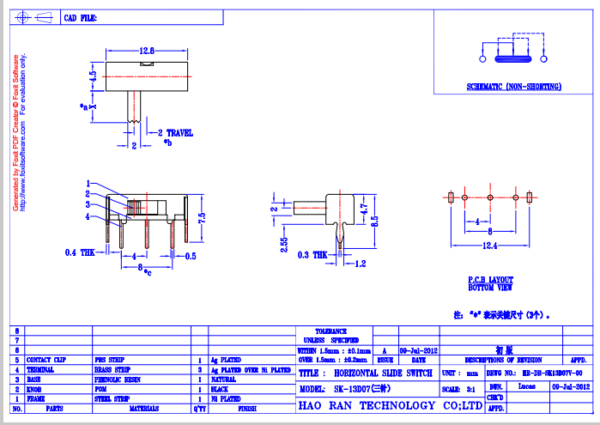

Mechanical Drawing:

Package included: SK-13D07 PCB Mounted Miniature 1, 5, 10 or 25 Pack
