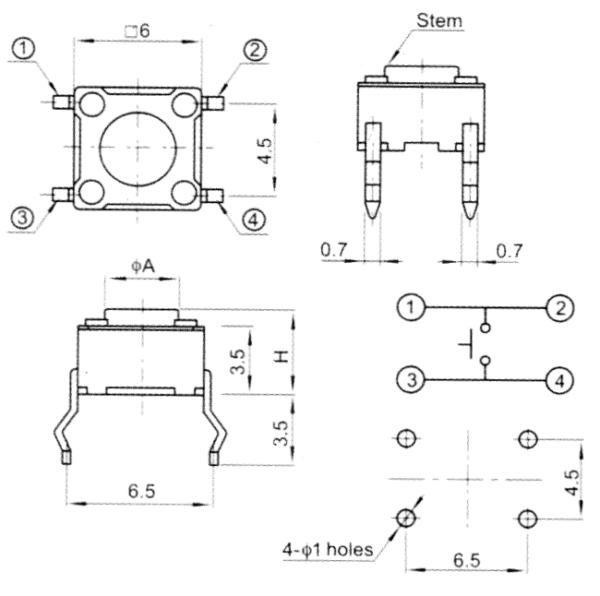

TVDP01 Tactile Switch 6mm*6mm*5mm

TVDP01 Tactile Switch 6mm 6mm 5mm is available through-hole. The switching current is 50 mA maximum, and the switching voltage is 12 V_DC maximum.

TVDP01 Miniature Low Profile Tact Switch is tiny and unsuitable for high currents.

Specifications: TVDP01 Tactile Switch 6mm 6mm

• Model: TVDP01
• Operation type: Momentary
• Protection Level: IP60
• Max. Current:  50mA
• Max. Voltage: 12V DC
• Travel: 0.25±0,10mm
• Contact Resistance: 100 mΩ max.
• Insulation Resistance: 100 MΩ (min DC 100V)
• Dielectric Strength: AC 250V for 1 min.
• Environment temperature: -30…+85°C
• Certificate: RoHS
• Brand: Kejian Electronics Co

Package includes: TVDP01 Tactile Switch 6mm*6mm*5mm, 5,10 and 25 pack
