310 DC Motor with Crocodile Clip

Name: 310 DC Motor with Crocodile Clip
SKU: 55433
Availability: InStock

Compact brushed DC motor supplied with pre-attached crocodile clip leads for quick, tool-free power connection. Suitable for educational projects, prototypes

This item: 310 DC Motor with Crocodile Clip

SG92R 180 Degree Micro Servo

1 × SG92R 180 Degree Micro Servo

19 in stock

$9.95

TT DC Motor Bracket

1 × TT DC Motor Bracket

18 in stock

$2.95

Title	Qty	Discount
Qty Discount	4 - 9	5% $2.84
Qty Discount	10 +	8% $2.75

SKU: N/A

Categories:020 motor series, DC Brush Motor, Motors - Servo's

Description

Additional information

Applications

Support & Utility

Q & A

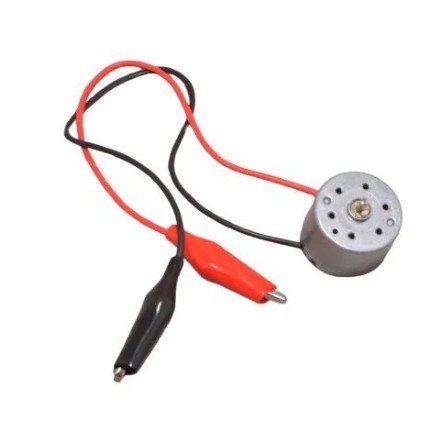

310 DC Motor with Crocodile Clip is designed for 3-6V DC but will work right down to 1.5V (1 x AA battery). To make hook-up a breeze, this motor comes with two wires attached via alligator clips.

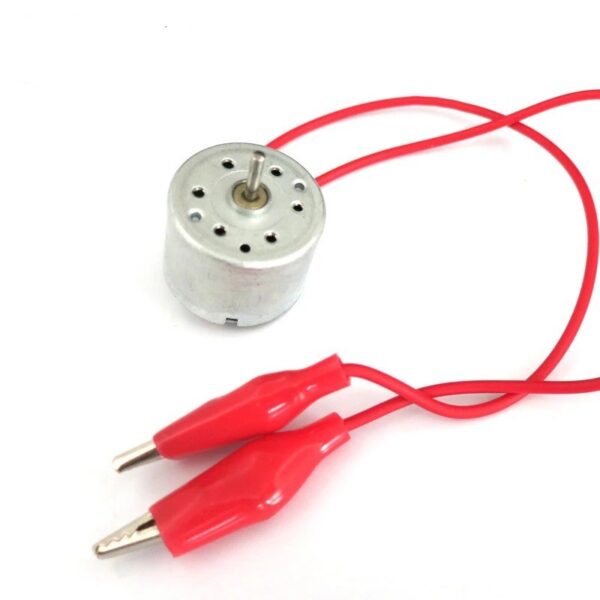

The motor measures 24mm in diameter and 24mm long, excluding the output shaft, which extends a further 5mm and measures 2mm in diameter. The 2mm shaft size makes it compatible with most “press-fit” accessories such as gears and propellers.

Specifications:

Single Shaft
Rated Voltage: 3V
Voltage range:1.5v to 6V
Test voltage, speed, and current
3.0V 4000RPM 20mA (No Load)±15%
6.0V 7000RPM 30mA (No Load)±15%
Stall: Around 260–480 mA @ 3V
Operating Temperature: -10°C ~ +60°C
Body Size: 24 * 24mm (Overall Length Excluding Shaft)
Shaft Size: 2mm diameter
Output shaft length: 5mm
Weight: 34 grams
Cable: with Crocodile (Alligator )
Clip length: about 25mm
Lead wire length: about 22cm
Lead wire thickness: about 2mm
Note: Cable colour is Random (Current stock is Red and Black)

Package Includes:

310 DC Motor with Crocodile Clip
