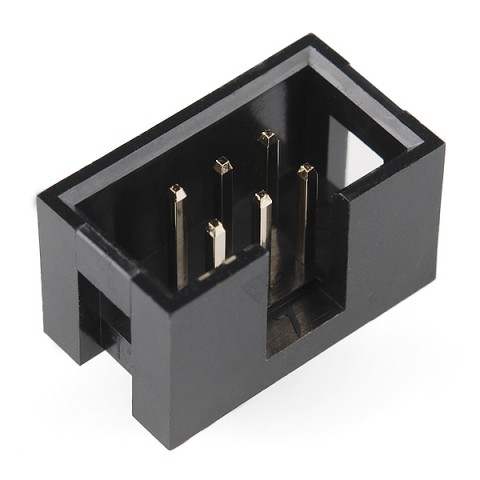

6 Pin Male Box header Vertical PCB Mount

6  Pin Male Box header Vertical PCB Mount 2.54mm 2×3 Male Shrouded Box header

Great general-purpose connectors are perfect for AVR ISP programming and work with our 6-pin IDC sockets and 6-conductor ribbon cables with IDC connectors.

Specifications:

• Pitch: 2.54mm, 0.100″
• Contact Type: PCB Vertical Mount
• Current Rating: 3A
• Insulation Resistance: 5000MΩ min. @ 500VDC
• Contact Resistance: 20mΩ max. @ 100mA DC
• Material: High Temp Polyester / Brass
• Material Flammability Rating: UL94 V-0
• Operating Temp: -40 ~ +105°C

Package Included: 6 Pin Male Box header Vertical PCB Mount
