626ZZ Ball Bearing (6x19x6)

Name: 626ZZ Ball Bearing (6x19x6)
SKU: 46146
Availability: InStock

626-ZZ is a high-quality, precision miniature ball bearing manufactured with both sides shielded with metal. Another durable and corrosion-resistant material, which helps to ensure its longevity and reliability in a wide range of applications

This item: 626ZZ Ball Bearing (6x19x6)

9V Procell Constant Alklaine Battery

Duracell Procell Constant Alkaline 9V Batteries PP3

1 × ~~9V Procell Constant Alklaine Battery~~

Out of stock

$6.25

852040 Lithium ion polymer Battery (LiPo) (3.7V 650mAh)

852040 Lithium ion polymer Battery lithium polymer

1 × 852040 Lithium ion polymer Battery (LiPo) (3.7V 650mAh)

36 in stock

$9.95

402530 Lithium ion polymer Battery (LiPo) (3.7V 250mAh)

1 × 402530 Lithium ion polymer Battery (LiPo) (3.7V 250mAh)

4 in stock

$8.99

Title	Qty	Discount
Qty Discount	4 - 9	5% $1.95
Qty Discount	10 +	8% $1.89

SKU: N/A

Categories:Bearing - Bushing, Power Control, Robotics, CNC, Printer Parts

Description

Additional information

Applications

Support & Utility

Q & A

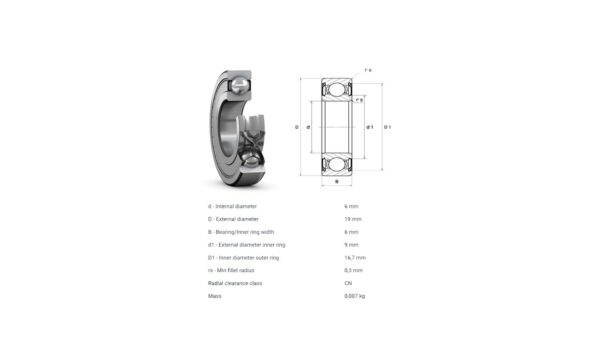

This 626zz Ball Bearing (6x19x6) is a metric deep groove ball bearing. The 626-ZZ inner diameter is 6 mm, the 626-ZZ outer diameter is 19 mm, and the 626-ZZ width is 6 mm.

Specifications:

Bearing Model: 626-ZZ
Also Known As: 62010-ZZ, pulley bearing 626zz
Inner Diameter (d): 6 mm
Outer Diameter (D): 19 mm
Width (B): 6 mm
Min. Chamfer (r): 0.2 mm
Dynamic Load (Cr): 2.75 kn
Static Load (Cor): 0.9 kn
Max. Speed (Grease): 32000 RPM
Max. Speed (Oil): 46000 RPM
Operating Temperature: -20°C +120°C
Series: 6200
Material: GCR15 Bearing Steel
Closures: Metal Shielded Both Sides

Package Includes:

626zz Ball Bearing (6x19x6)

	Check out our Clearance and on-sale items. Development Resources: Demo Codes, Schematics, Datasheets, Etc
	Hackaday serves up fresh hacks every day from around the Internet.
	Instructables is a community for people who enjoy making things. Explore, share, and do your next project with us!
	Where the world builds software
	Raspberry Pi Foundation: What would you like to make today?
	Arduino’s mission is to enable anyone to enhance their lives through accessible electronics and digital technologies.
	Wikipedia is a free online Encyclopedia created and edited by volunteers worldwide and hosted by the Wikimedia Foundation.
Notes:	There may be slight size deviations due to manual measurement, variations in measuring methods, and the use of different tools. The picture may not accurately reflect the actual colour of the item due to variations in photography lighting, angles, and display monitors.

Weight	0.007 kg
Dimensions	1.9 × 1.9 × 0.6 cm
Pack Qty	1 Pack, 2 Pack, 4 Pack

Product Applications

626-ZZ Miniature Ball Bearings are used in a wide range of applications from Automation Control Components to Robotic Systems, Chemical Lab Equipment, High Speed Applications, Food Processing Equipment, Hand Piece, RC Helicopters, RC Planes, Fan Motors, among others.
