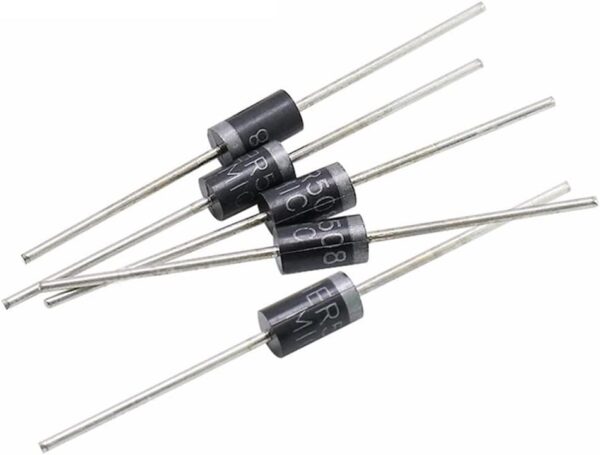

HER508 5A 1000V DO-27 Fast Recovery Diode

HER508 5A 1000V DO-27 Fast Recovery Diode is a high-current and low-forward voltage drop Power Rectifier. The HER508 has a reverse voltage rating of 1000V and is suitable for forward currents up to 5A. The Diode has a high surge overload rating of up to 200A peak current.

Specifications:

• Manufacturer Part No: HER508
• Manufacturer: MIC
• Technology: Fast Recovery Diode
• Voltage – DC Reverse: 1000V
• Current – Average Rectified: 5A
• Max Surge Current: 200 A
• Maximum Forward Voltage at IF = 5.0 A: 1.7V
• Reverse Recovery Time  – 100ns
• Standard Recovery:  >500ns,>200mA
• Current – Reverse Leakage: –
• Operating Temperature: -55°C ~ 150°C
• Epoxy: UL94V-O rate flame retardant
• Lead: Axial
• Mounting Type: Through Hole
• Supplier Device Package -Case:  DO-27/DO-201AD

Package includes: HER508 5A 1000V DO-27 Fast Recovery Diode 5, 10 or 25 pack
