Name: JGA12 N20 6V 15-3000RPM Micro Hall Encoded Gear DC Motor
SKU: 45786
Availability: InStock

The JGA12 N20 6V 15-3000RPM Micro Hall Encoded Gear DC Motor is a small yet powerful component that delivers precise control, reversible motion, and long-lasting performance. It is a solid choice for engineers, makers, and hobbyists alike.

$13.99

This item: JGA12 N20 6V 15-3000RPM Micro Hall Encoded Gear DC Motor

$13.99

Servo Motor SG-5010 - 360 degrees

1 × Servo Motor SG-5010 - 360 degrees

10 in stock

$12.75

Title	Qty	Discount
Qty Discount	4 - 9	5% $13.29
Qty Discount	10 +	8% $12.87

SKU: N/A

Categories:Metal Gear Motors, Motors - Servo's, N20 Encoded motor series

Description

Additional information

Applications

Support & Utility

Q & A

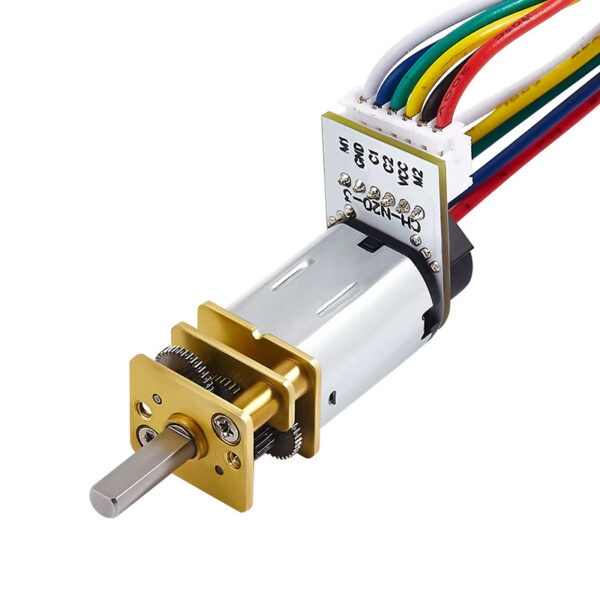

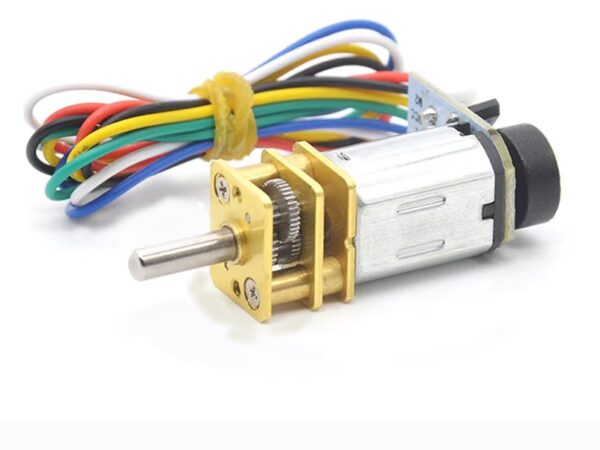

The JGA12-N20 6v 15–3000rpm Micro Permanent Magnet DC Hall Encoded Gear Motor is a compact, geared DC motor with an integrated Hall effect encoder. Due to its small size, wide RPM range, and encoder feedback, it’s commonly used in robotics, automation, and DIY electronics.

The motor can be easily controlled using H-bridge motor drivers like L298N, L9110S, or TB6612FNG and is compatible with microcontrollers such as Arduino, Raspberry Pi, and ESP32. PWM signals allow for precise motor speed and direction adjustment.

Specifications:

Motor Type: JGA12-N20
Shaft Diameter: 3mm
Shaft Length: 10mm

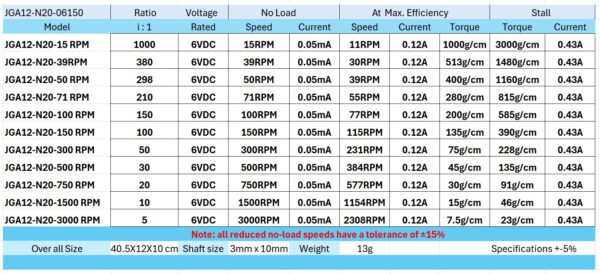

Rated Torque: See Data Sheet
Stall Torque: See Data Sheet
Rated Current: See Data Sheet
Stall Current: See Data Sheet
Voltage Range: DC 5 – 6vdc
Voltage Rated for RPM: 6vdc
RPM: See Data Sheet
Direction: CW/CCW; Support Reversed
Operating Temperature Range: -20℃~+70℃
Gear Material: Full Metal
M3 Mount Screws
Net Weight: 13g

Encoder Parameters:

Type: AB two-phase incremental magnetic Hall encoder
Rotation pulse output: Basic pulse, Seven ppr x gear reduction ratio
Power supply voltage: DC3.3V / DC5.0
Basic function: Built-in pull-up shaping resistor, direct connection to microcontroller

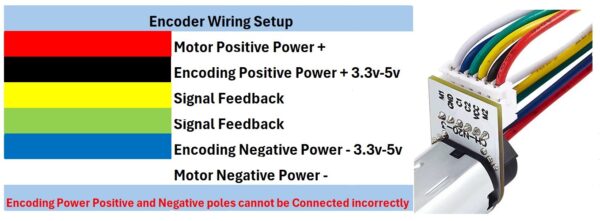

Interface type: ZH1.5-6PIN (standard connection cable)
Output signal type: Square wave AB phase
Response frequency: 100 KHz
Basic pulse number: 7 PPR
Magnetic ring trigger pole number: 14 poles (7 pairs of poles)
Cable: 150mm 6-way

Package Includes:

JGA12 N20 6v Hall Encoded Gear DC Motor
