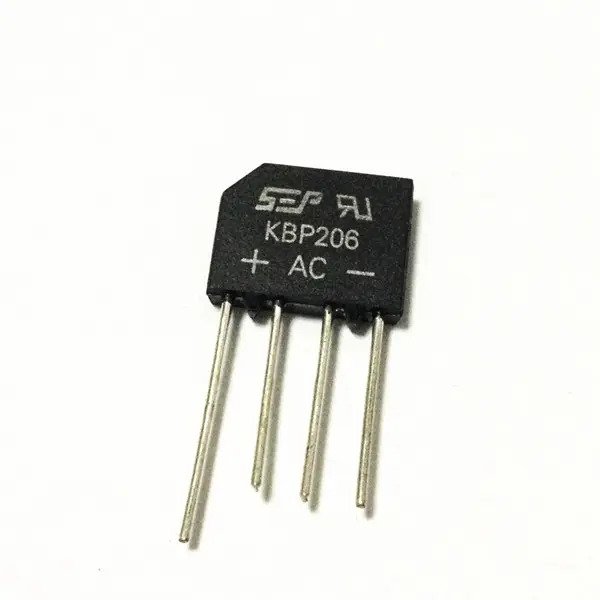

KBP206 Bridge Rectifier 2 Amp

KBP206 Bridge Rectifier 2 Amp, Internally 4x Diodes in a bridge configuration, useful in AC-DC conversion or DC polarity correction for operation up to 600V at 2A.

A diode bridge is an arrangement of four (or more) diodes in a bridge circuit configuration that provides the same output polarity for either input’s polarity.

Specifications: KBP206 2 Amp Bridge Rectifier

• Voltage: 600V
• Current: 2A
• Housing: KBP
• Forward voltage: 1.1V @ 2A
• Peak Non-Repetitive Forward Surge Current (A):60A
• Reverse current: 10uA @ 420V
• Operating temperature: -55C – 150C
• Bridge type: Single
• Mounting type: Through-hole
• Dimensions: 14.75mm x 3.65mm x 10.6mm

Brand Can change Due to stock availability.

Package Included: KBP206 2 Amp Bridge Rectifier 1 or 2 pack
