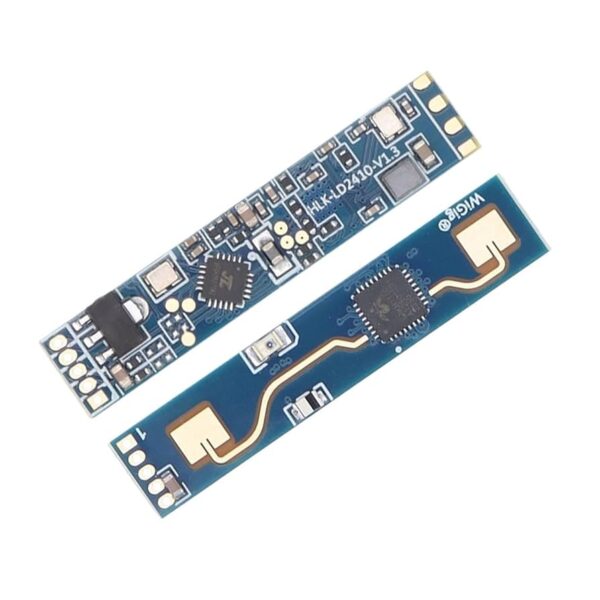

HLK-LD2410B Human Presence Radar Module with Bluetooth

HLK-LD2410B Human Presence Radar Module with Bluetooth

Name: HLK-LD2410B Human Presence Radar Module with Bluetooth
SKU: 55728
Availability: InStock

HLK-LD2410B identifies motion and micro-movements, outputting detection results in real time. It supports a maximum sensing range of 5 meters.

This item: HLK-LD2410B Human Presence Radar Module with Bluetooth

HX711 Electronic Load Cell Weighing Sensor 2 Channel 24-bit A/D Converter Module

1 × HX711 Electronic Load Cell Weighing Sensor 2 Channel 24-bit A/D Converter Module

77 in stock

$4.95

GY-53 VL53L0X Laser ToF Flying Time Ranging

1 × GY-53 VL53L0X Laser ToF Flying Time Ranging

2 in stock

$15.95

GY-30 BH1750FVI Digital Light Sensor

1 × GY-30 BH1750FVI Digital Light Sensor

8 in stock

$6.95

Title	Qty	Discount
Qty Discount	4 - 9	5% $12.30
Qty Discount	10 +	8% $11.91

SKU: N/A

Categories:Interactive Sensors, Microwave Radar, Sensors

Description

Additional information

Applications

Support & Utility

Q & A

The HLK-LD2410B is a high-sensitivity 24 GHz human presence radar module from Hilink Electronics. Using FMCW (Frequency-Modulated Continuous Wave) technology and advanced radar signal processing, it accurately detects both moving and stationary human targets.

It can calculate auxiliary data, such as distance, supporting a maximum sensing range of 5 meters with 0.75-meter resolution. Designed for indoor applications, the module identifies motion and micro-movements, providing real-time detection output.

A visual configuration tool allows easy adjustment of detection range, sensitivity in different zones, and unmanned delay time, making it adaptable to various bright lighting, security, and automation systems.

Features:

Detection Range: The module can detect human presence at distances up to 5 meters, with a resolution of 0.75 meters, ensuring high precision.

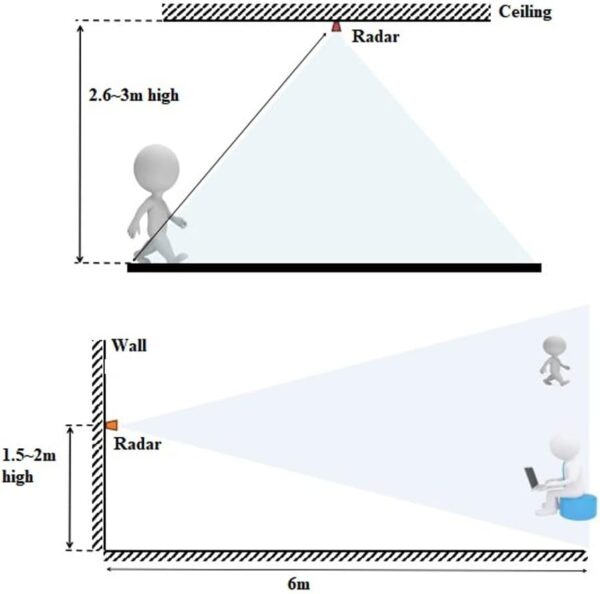

Wide Detection Angle: The sensor covers a ±60° field of view, allowing it to monitor a broad area.
Micro-Motion Detection: In addition to detecting moving human bodies, the module can detect static and micro-movements, such as sitting or lying down.
Adjustable Sensitivity: Users can fine-tune detection parameters to suit specific needs.
Bluetooth & UART Communication: The sensor supports Bluetooth and UART interfaces, enabling flexible configuration via mobile apps or direct device integration.
Strong Environmental Adaptability: The sensor operates effectively across a wide range of environmental conditions, unaffected by factors such as temperature, humidity, and light.
Compact Design: The module is tiny (7mm x 35mm), making it easy to integrate into various devices such as smart home systems or security devices.

Specifications:

Manufacturer: Hi-Link

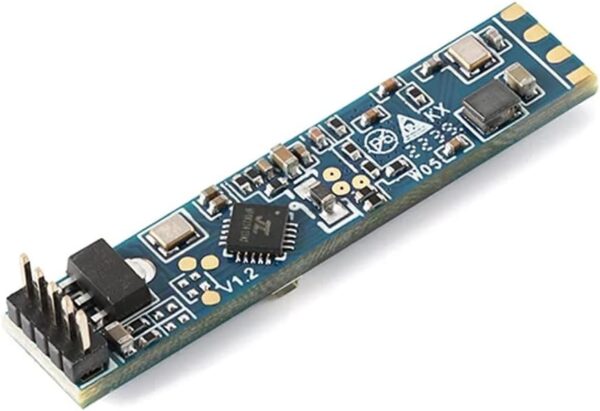

Model: LD2410B (No Header Pins Mounted)
Model: LD2410B-P (Header Pins Mounted)
Frequency Band: 24 – 24.25GHz
Modulation: FMCW (Frequency Modulated Continuous Wave)
Frequency Sweep Bandwidth: 250MHz (In line with FCC and CE Certification Standards)
Sensing Distance: 0.75 – 5 Meters
Resolution: 0.75 Meters
Sensing Angle: ± 60 Degrees
Operating Voltage Range: 5 – 12VDC
Output and Logic Level Voltage: 3.3VDC
Operating Current: ~79mA
Operating Temperature Range: -40°C to +85°C
Communication Protocol: UART (Default Baud Rate = 256000 / 1 Stop bit / No Parity bit)
Header Pin Pitch: 1.27mm
Dimensions: ~(35mm x 7mm)

The module has five pins, with the following functions:
OUT: Target Status Output High when human presence is
detected, low when no human is detected
UART_Tx: UART Tx Serial transmission pin
UART_Rx: UART Rx Serial reception pin
GND: Ground Ground connection
VCC: Power Input 5V power input

Package Includes:

HLK-LD2410B Human Presence Radar Module with Bluetooth
