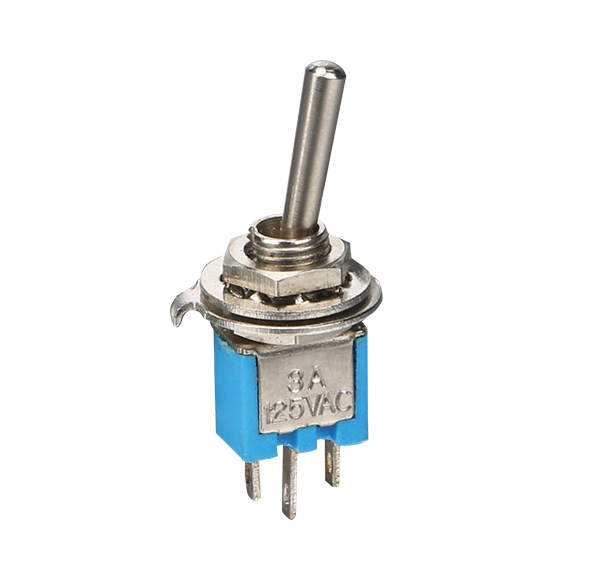

Name: MTS-102 Blue Mini Toggle Switch 3 pins SPDT On-On 3A
SKU: 7708
Availability: InStock

A switch may be directly manipulated by a human as a control signal to a system, such as a computer keyboard button, or to control power flow in a circuit, such as a light switch.

This item: MTS-102 Blue Mini Toggle Switch 3 pins SPDT On-On 3A

Slide Switch SS12D00G2 2 Position On/Off SPDT 1P2T 3 Pin (3 Pack)

1 × Slide Switch SS12D00G2 2 Position On/Off SPDT 1P2T 3 Pin (3 Pack)

60 in stock

$1.50

Title	Qty	Discount
Qty Discount	4 - 9	5% $1.09
Qty Discount	10 +	8% $1.06

SKU: N/A

Categories:Switches, Toggle Switches

Description

Additional information

Applications

Support & Utility

Q & A

MTS-102 Blue Mini Toggle Switch 3 pins SPDT On-On 3A

The most familiar form of switch is a manually operated electromechanical device with one or more sets of electrical contacts connected to external circuits.
Each set of contacts can be in one of two states: “closed”, meaning the contacts are touching and electricity can flow between them, or “open”, meaning the contacts are separated and the switch is nonconducting.

Specification

Specifications:

Colour: Blue
Mounting hole diameter: 5.8 mm/0.23″
Material: Metal & Resin
Terminal Material: Brass with silver plated
Contact Rating: 6A 125VAC / 3A 250VAC
Dimensions: 33 x 13 x 8mm
Dimensions 6mm panel cut-out
On-Off-On Momentary action
Switch Function: ( ON-ON )
SPDT contacts
Electrical Life: ≥ 10,000 Cycles
Mechanical Life: ≥ 100,000 Cycles
Dielectric strength: 1500VAC 1 minute
Operating Temperature: -25℃~+85℃
Contact Resistance: 50mΩ max
Insulation Resistance: 1000mΩ min (500VDC)
RoHS: Yes
These switches have 2mm x 0.8mm terminals

Package Includes:

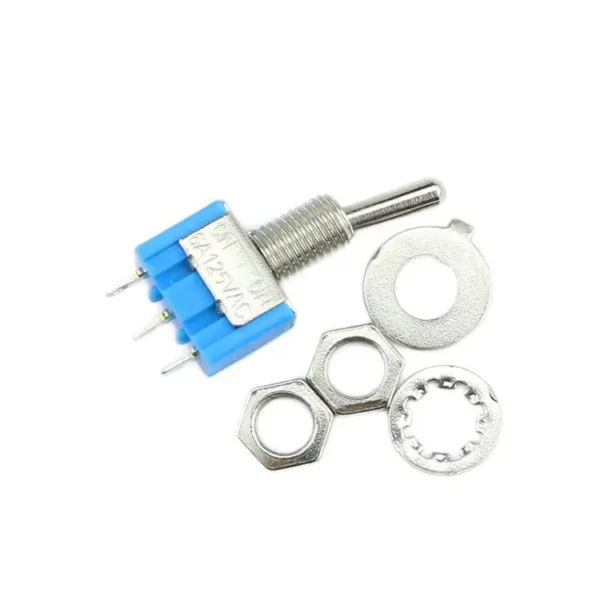

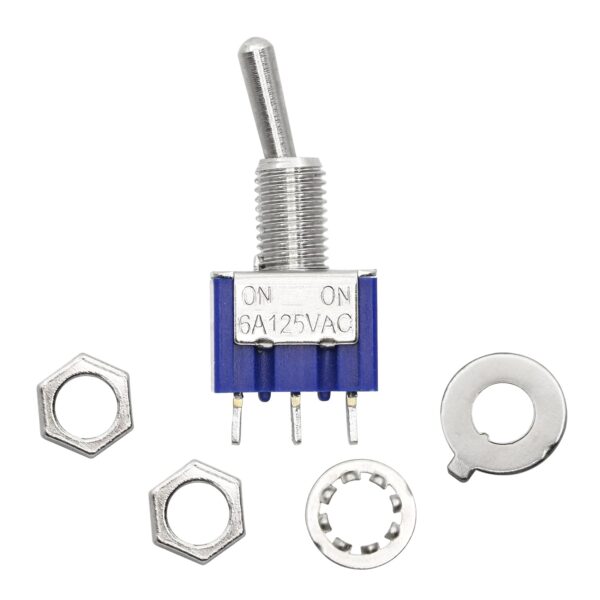

MTS-102 Blue Mini Toggle Switch 3 pins SPDT On-On 3A with Washer & Nut Set
